Lily58 Pro RE MX Hotswap Keyboard PCB Kit

18333613

Clear

INCLUDES ALUMINUM KNOBS

Hence the large price difference from  the non-RE kit.

SWITCH & BASE PLATES SOLD SEPARATELY

The photo is outdated.

PCB KIT ONLY

You will need other parts to build the full keyboard: a case, pair of MCUs, pair of OLEDs (optional), 58 x switches,  a USB cable, 56 x 1u, and 2 x 1.5u keycaps.

SOLDERING REQUIRED

You will need to solder the components to have a complete keyboard PCB. But we can solder them for you, choose “Solder the Components”.


The Lily58 Pro is designed by Naoki Katahira. There are numerous forks of the original design, but this is the original as-is design from the creator.

FEATURES

  • QMK firmware
  • MX Hot-swap Sockets
  • 58 Keys
  • Per-split 128×32 OLED Display support

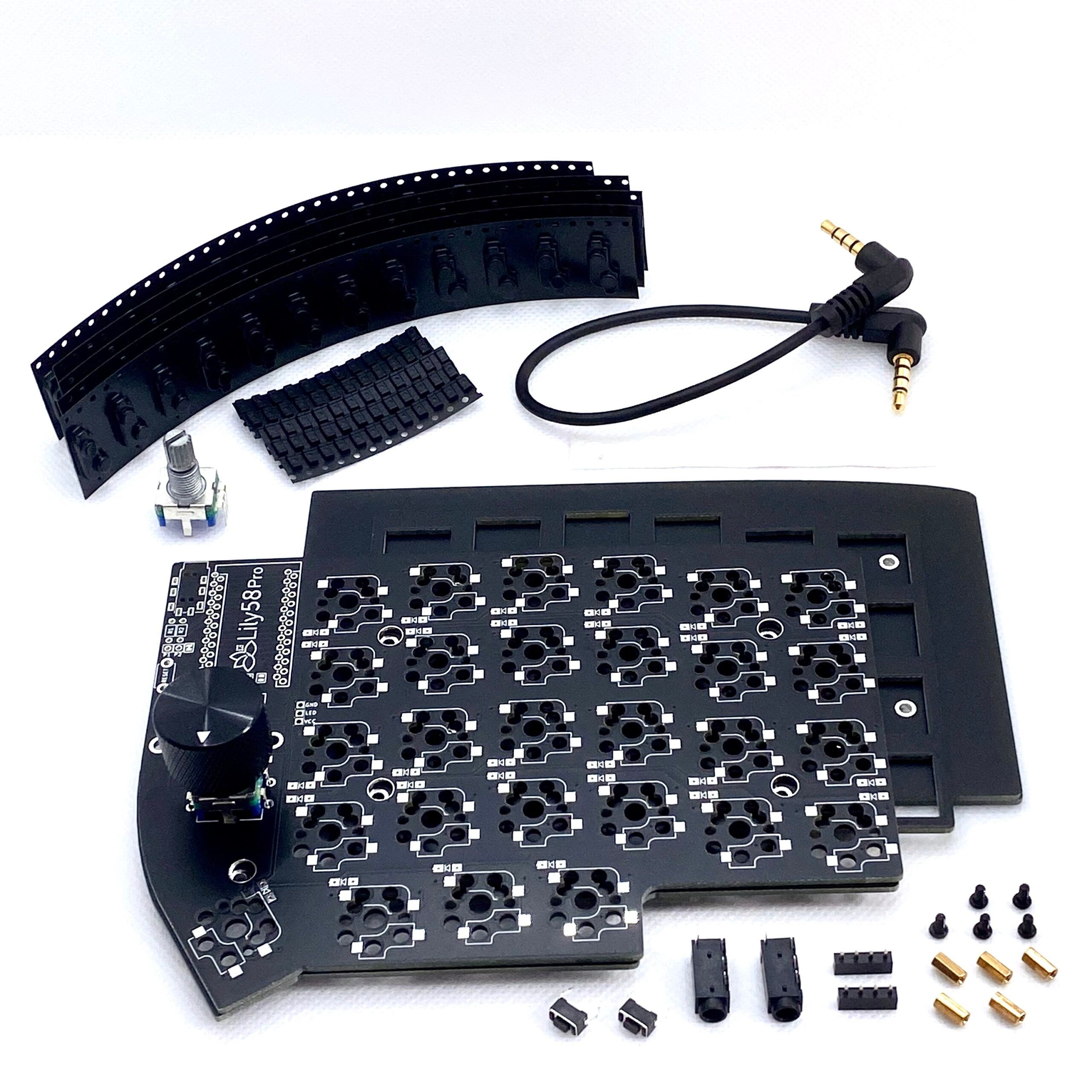

KIT CONTENTS

  • Lily58 Pro PCBs
  • 58 x Switch Diodes SMD (+2 spares )
  • 58 x Kailh Hotswap Sockets
  • 2 x Reset Switch
  • 2 x TRRS Socket
  • 1 x TRRS Cable
  • 2x 4-pin Lopro Female OLED Socket
  • 2x Rotary Encoder
  • 2x Aluminum Knob

If you choose Low Profile Female Header for MCU Socketing:

  • 12x 4-pin Lopro Female MCU Socket

BUILD GUIDE

You can find the official build guide here to the Lily58 Pro.
