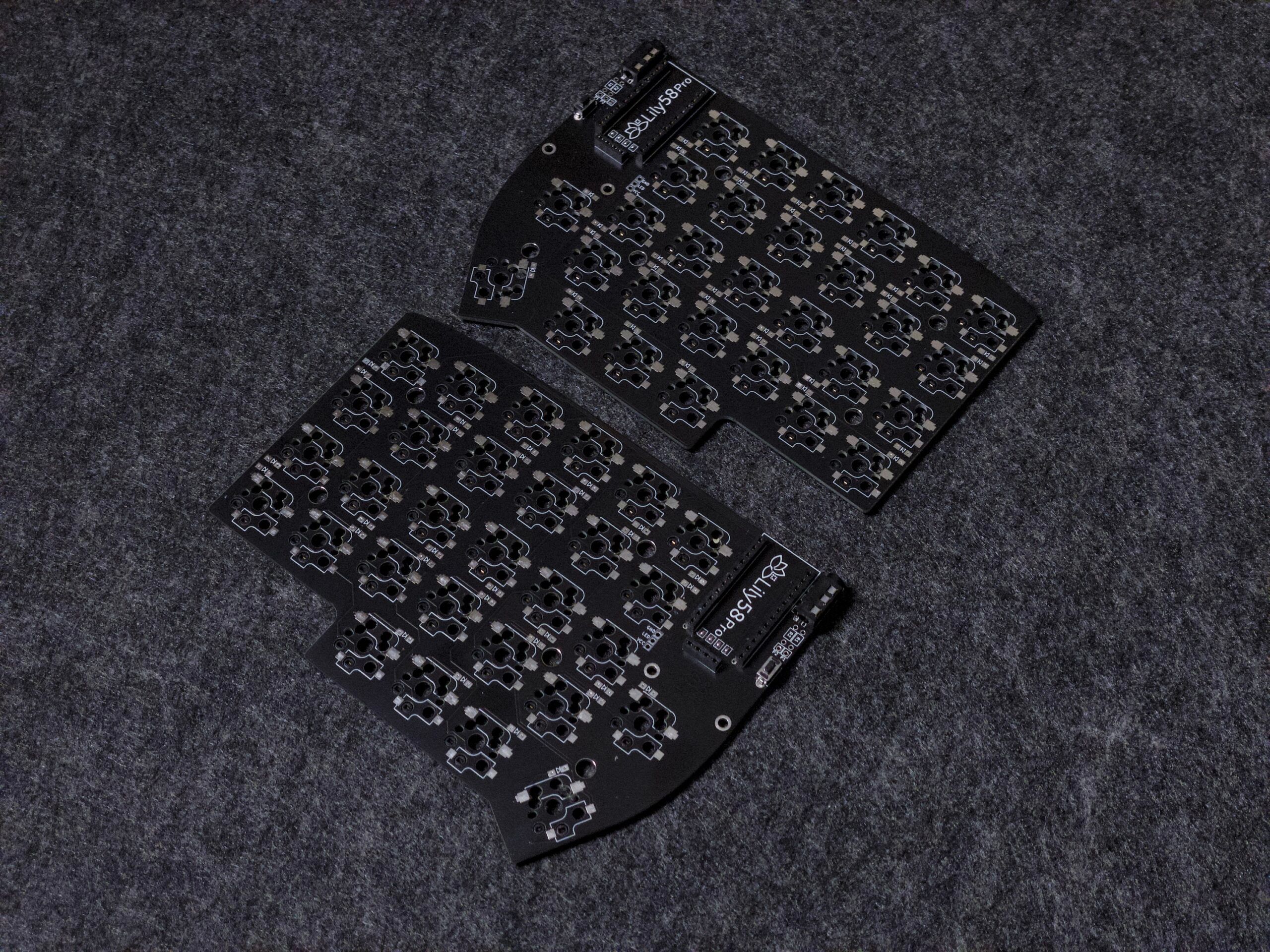

Lily58 Pro Choc PCB Kit

17903260

The Lily58 Pro is designed by Naoki Katahira. There are numerous forks of the original design, but this is the original as-is design from the creator. This kit uses Choc switches and keycaps.

FEATURES

  • QMK firmware
  • Choc Hotswap Sockets
  • 58 Keys
  • Per-split 128×32 OLED Display support

KIT CONTENTS

  • Lily58 Pro PCWs
  • 58x Switch Diodes SMD
  • 58x Kailh Hotswap Sockets
  • 2x Reset Switch
  • 2x TRRS Socket
  • 1x Basic TRRS Cable
  • NKC Daughterboards Hotswap Socketing
    • 2x 4-pin Low-profile Sockets
    • 4x 12-pin Low-profile Sockets

BUILD GUIDE

You can find the official build guide here to the Lily58 Pro.


PCB Kit Only
- To complete the PCB  you will need MCUs and OLEDs (not all keyboards support this), 2 of each for splits, 1 for keypads and unibody builds
- To complete a Barebones Kit, you will also need a compatible case kit

Soldering Options Available
- You will need to solder the components to have a complete keyboard PCB
- We can solder them for you, choose “Soldered” under product options
